Trie (Prefix Tree)

Overview

A trie (prefix tree) is a tree-based data structure for storing and searching strings efficiently. It organizes words by their characters so that strings with the same starting letters share the same path from the root.

Use cases: Autocomplete, spell checking, dictionary or word lookup, IP routing, search suggestions.

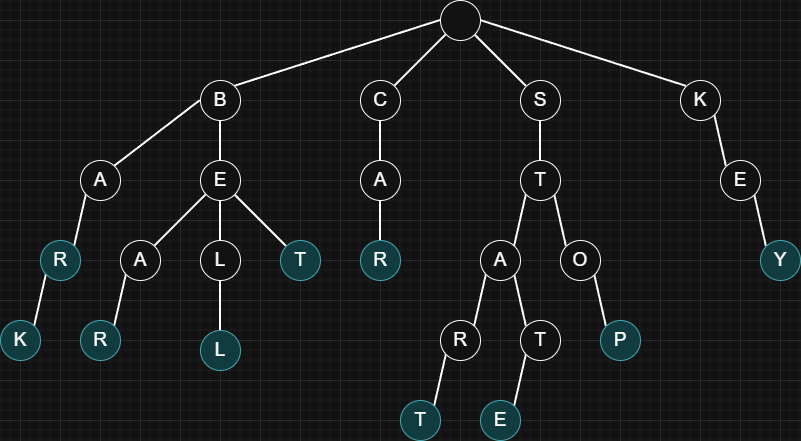

Trie example for the following words: bar, bark, bear, bell, bet, car, start, state, stop, key.

Implementation

class TrieNode {
  constructor() {
    this.children = new Map();
    this.isWord = false;
  }
}

class Trie {
  constructor() {
    this.root = new TrieNode();
  }

  insert(word) { ... }

  search(word) { ... }

  startsWith(prefix) { ... }

  #walk(str) {
    let node = this.root;
    for (const ch of str) {
      const next = node.children.get(ch);
      if (!next) return null;
      node = next;
    }
    return node;
  }
}

Usage:

const trie = new Trie();

trie.insert('stop');
trie.insert('bark');
trie.insert('bet');
trie.insert('bar');
trie.insert('car');
trie.insert('bear');
trie.insert('bell');
trie.insert('start');
trie.insert('key');
trie.insert('state');

console.log(trie.search('star')); // false
console.log(trie.search('start')); // true
console.log(trie.startsWith('st')); // true

• Insert:

  The insert method starts at the root, then loops through the characters of the word.

  For each character, it checks if the current node already has that character in its children. If it does not, it creates a new TrieNode and saves it under that character. Then it moves node to that child and keeps going.

  Once it has processed all characters of the word, it marks the last node with isWord = true so the trie knows a complete word ends there.

  insert(word) {
    let node = this.root;

    for (const ch of word) {
      if (!node.children.has(ch)) {
        node.children.set(ch, new TrieNode());
      }

      node = node.children.get(ch);
    }

    node.isWord = true;
  }

• Search:

  The search method starts from the root and follows the trie through the word's characters. If at any point a character is missing, the search fails right away and returns false.

  If it successfully reaches the node for the last character, it still needs one more check: isWord must be true, because the trie might contain the same path as a prefix without the full word being inserted.

  search(word) {
    const node = this.#walk(word);
    return !!node && node.isWord;
  }

• Search Prefix:

  Same as search, but it does not require isWord to be true, because a prefix does not need to be a complete word.

  startsWith(prefix) {
    return !!this.#walk(prefix);
  }

• Suggestions (Optional): Get words that start with a given prefix.

  First, it follows the trie using the prefix characters to reach the node where the prefix ends (if the prefix path does not exist, it returns []).

  From that node, it explores all possible next letters below it using a recursive search.

  Recursive search: It keeps going down one path, building a longer string (path + ch). When it cannot go further, it backtracks and tries the next path.

  Whenever it reaches a node where isWord is true, it means the built string is a complete stored word, so it adds it to the results.

  The search also stops early once it has already found enough suggestions.

  suggestions(prefix, limit = Infinity) {
    const start = this.#walk(prefix);

    if (!start) return [];

    const out = [];

    const dfs = (node, path) => {
      if (out.length >= limit) return;

      if (node.isWord) out.push(path);

      for (const [ch, child] of node.children) {
        dfs(child, path + ch);

        if (out.length >= limit) return;
      }
    };

    dfs(start, prefix);

    return out;
  }

  Usage:

  console.log(trie.suggestions('st')); // ['start', 'state', 'stop']
